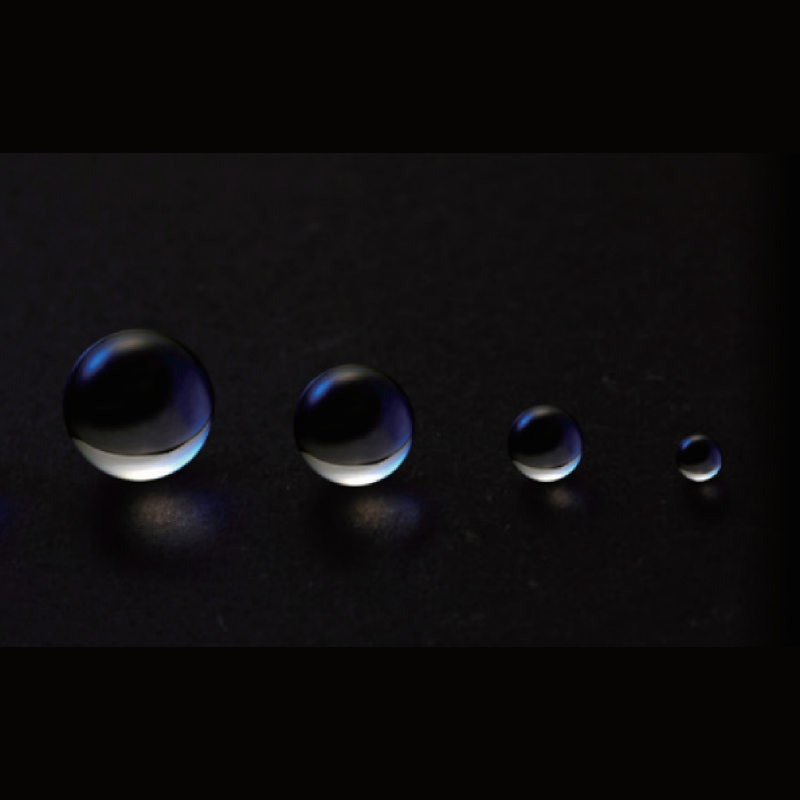

Ball lenses are highly polished spheres made of optically transparent homogeneous materials.Hontec Optics Careful- ly controlled manufacturing process produces spheres with precise diameters and unsurpassed surface quality.
Numerical aperture of ball lenses is proportional to their refractive index. These lenses are used in visible and near infrared spectrum. The ball lenses could be equatorially ground relative to direction of optical axis to facilitate packaging and orient AR coating. The round cross-section of these lenses results in the large field of view and simple, cost-effective alignment where most of the positioning errors result in simple focusing errors. These lenses can be used as fiber-optics collimators. In order to accommodate different fiber-arrays pitch, the edge of the lens may be ground to a desired width.
Ball Lenses are commonly used to improve signal quality in fiber coupling applications, or for use in endoscopy or bar code scanning applications. Ball Lenses feature short back focal lengths to minimize the distance needed from the Ball Lens to the optical fiber.

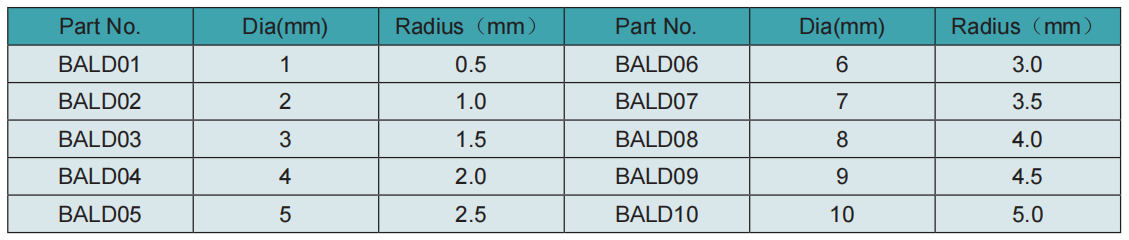

Hontec Optics is able to produce ball lens with ultra-high-precision diameter and face.We can manufacture different materials and the range of 1-50mm diameter ball lens according customers requirements.

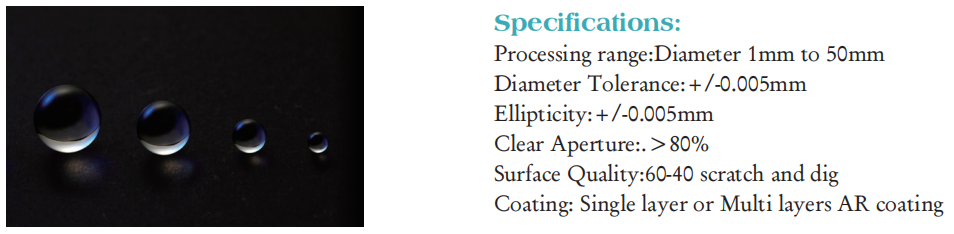

The above-mentioned are commercial specifications only, higher tolerances are available upon request.
