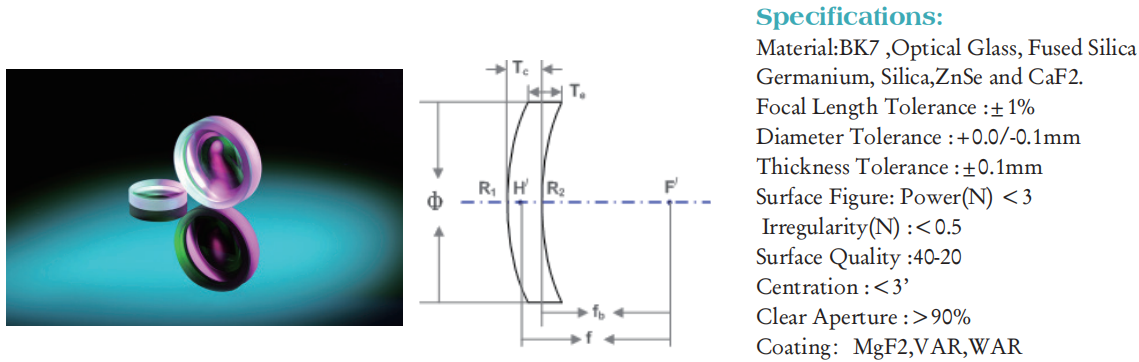

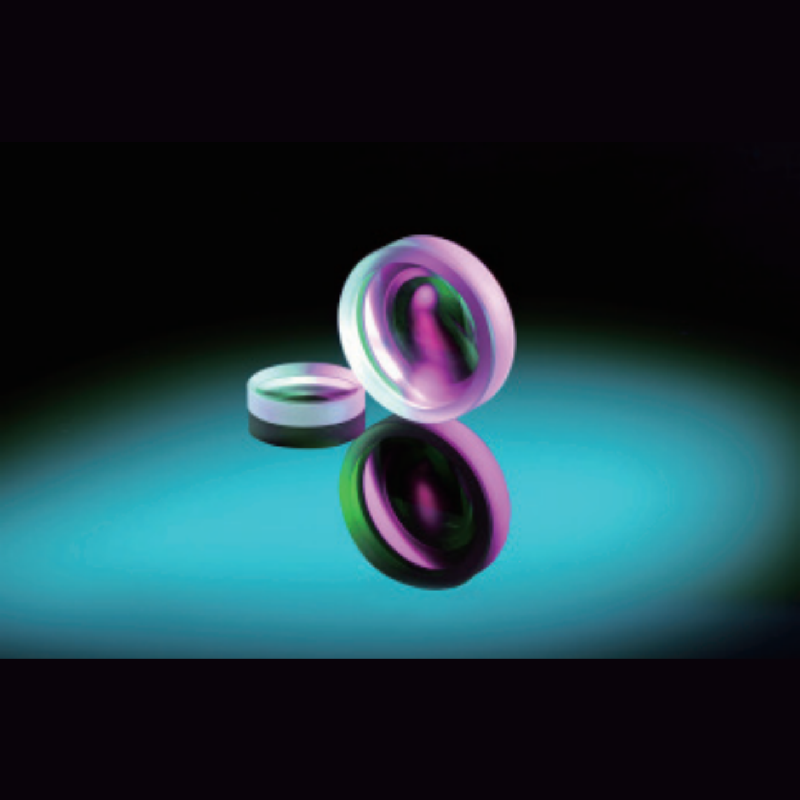

Meniscus lenses have two curved surfaces one of which is protrusive while other is intrusive, also these lenses are referred to as convex-concave lenses. Radii of curvature of both surface can be chosen independently from each other. Meniscus lenses find application in optical systems, where aberrations need to be minimized, for instance in multi lens focusing objective, where it helps to minimize focal spot of the beam. The same benefit is applied in collimators. Anoth- er advantage is that meniscus design allows to make longer focal length lenses than the ones available in Plano-convex design. Lenses with equal radii of curvature on opposite sides serve well as substrates for resonator mirrors.
1.The positive meniscus lens can increase the NA of the system while only adding slightly to the total spherical aberrations.
2. The negative meniscus lens is used to increase the focal length of another lens while maintaining the angular reso- lution of the optical assembly.

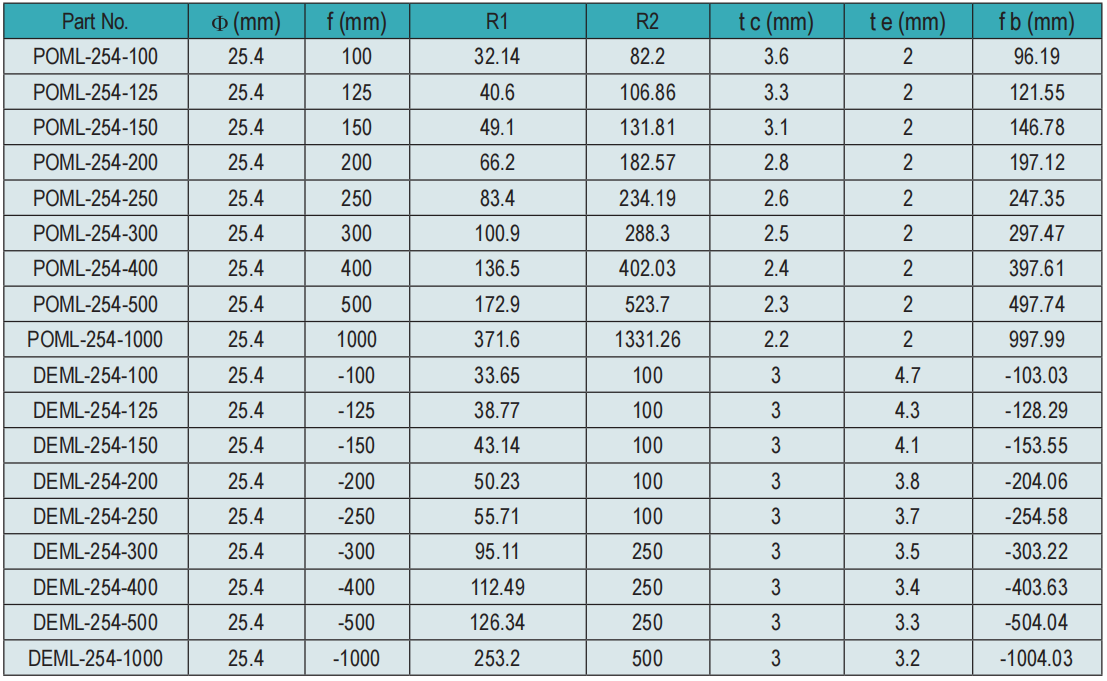

Standard BK7 Meniscus Lenses
